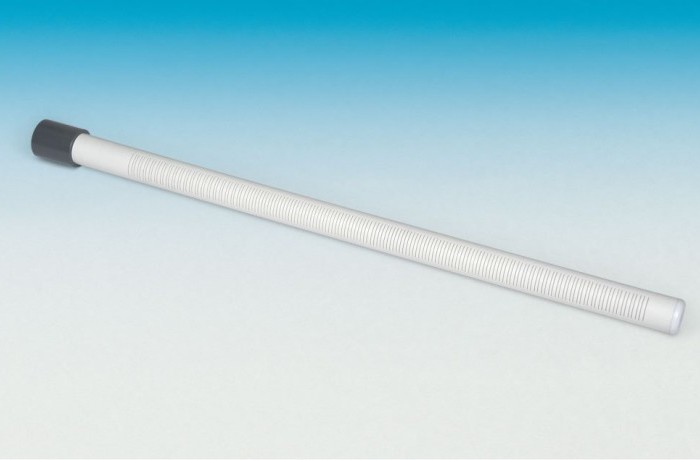

The Casagrande Piezometer Tip is used with the Solinst Model 101 Water Level Meter to monitor subsurface water levels. The piezometer tip, attached to PVC riser pipe, is placed in a sand zone then sealed to the surface with a bentonite grout. The Water Level Meter is accessed through the end of the riser pipe at the top of the borehole. A PVC adapter is used to attach the piezometer tip to flush-coupled PVC riser pipe.
Specifications
| Piezometer Tip Material | 70 micron polyethylene cylinder |
| Maximum O.D. | 33.5 mm (including end plug) |
| Length | various lengths available (please specify) |
