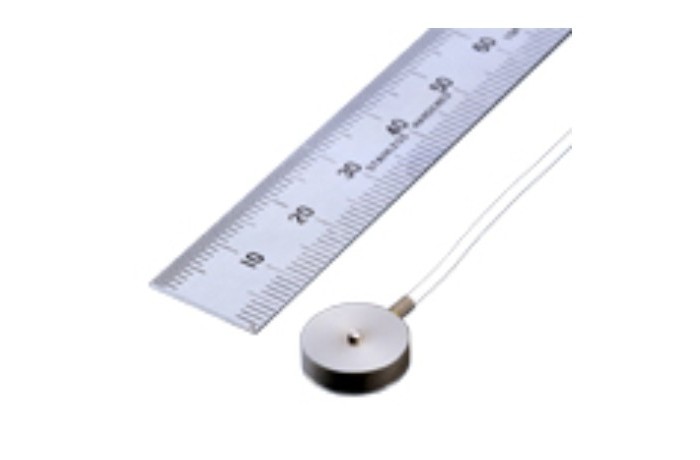

The CLS-NA and CLS-NB Load Cells are ultracompact load cells with capacities ranging from 10N to 10kN. They are widely used for measuring load distribution or loads in structural mock-up testing and as a sensor for industrial machinery.
Protection ratings
: IP 53 equivalent / IP 41 equivalent(CLS-2NA , CLS-5NA)
Features
- Miniature, High accuracy, High sensitivity
- Easy handling
- Ideal sensor for model testing
Specifications
| Type | Capacity | Rated output | Non-linearity | Temperature range |
| CLS-2NA | 2N | 1mV/V (2000×10-6strain)±20% | 1%RO | -10 ~ +60°C |
| CLS-5NA | 5N | |||
| CLS-10NA | 10N | 0.5%RO | ||
| CLS-20NA | 20N | |||
| CLS-50NA | 50N | |||
| CLS-100NA | 100N | |||
| CLS-200NB | 200N | 1.5mV/V (3000×10-6strain)±10% | ||
| CLS-500NB | 500N | |||
| CLS-1KNB | 1kN | |||
| CLS-2KNB | 2kN | |||
| CLS-5KNB | 5kN | |||
| CLS-10KNB | 10kN |
