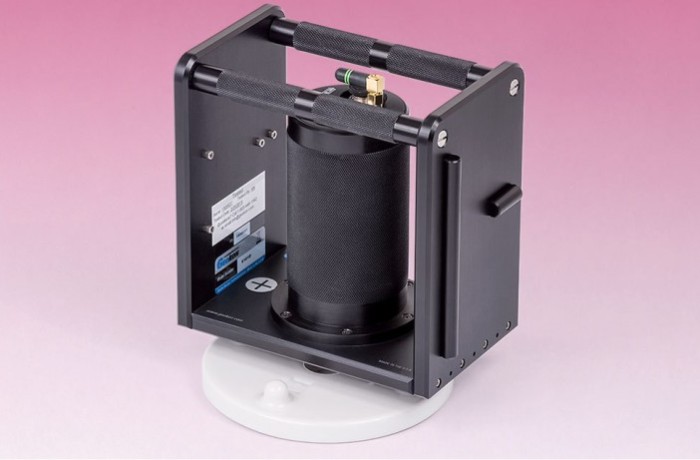

Digital Tiltmeter (MEMS)

The Model 6101D MEMS Digital Tiltmeter is a low-cost, portable device designed to measure tilt in structures such as buildings, dams and embankments and also for measurements related to the stability of slopes, open pits and the walls of excavations (e.g. slurry walls). The sensing element is a highly accurate MEMS (Micro-Electro-Mechanical Systems) tilt sensor, which communicates with the Model FPC-1 Field PC Readout via Bluetooth®.

Specifications

Standard Range¹ ±15°
Resolution ±4 arc seconds (±0.02 mm/m)
Sensor Accuracy² ±10 arc seconds (±0.05 mm/m)
Sensor Output Digital
Shock Survival 2000 g
Temperature Range −20°C to +80°C
L × W × H 172 × 102 × 166 mm

¹Other ranges available on request.

²Established under laboratory conditions.
