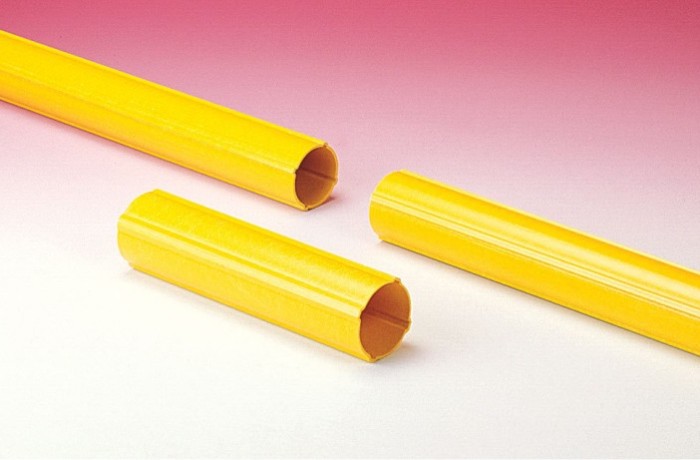

Inclinometer Casing

The Model 6500 Inclinometer Casing is used in conjunction with all commercially available inclinometer probes to monitor the stability of embankments, slopes, rock cuts, foundations and excavation walls, piles, coffer dams, etc. The casings and couplings are pop-riveted together and the joints are waterproofed using caulk and tape. The casing has wheel grooves spaced at 90° intervals, for probe orientation, and is manufactured from pultruded fiberglass ensuring a lightweight, strong, environmentally resistant casing with grooves free from spiraling.

Specifications

Maximum O.D. 70 mm (casing), 76.5 mm (coupling)
Wall Thickness 3 mm (casing), 2 mm (coupling)
Length 3 m (casing), 300 mm (coupling)
Telescoping Coupling available up to 3 m (please specify)
