Pressure Cells

  • Pile Tip Pressure Cell (VW)

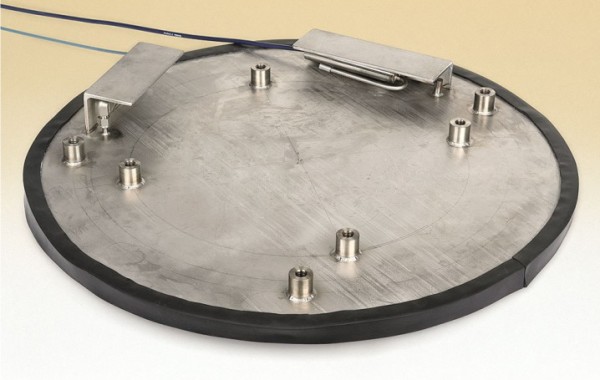

    Pile Tip Pressure Cell (VW)

    The Model 4855 Pile Tip Pressure Cell is used to measure pile-tip loads in cast-in-place concrete piles (caissons). Like the Model…

  • NATM Style Shotcrete Stress (VW)

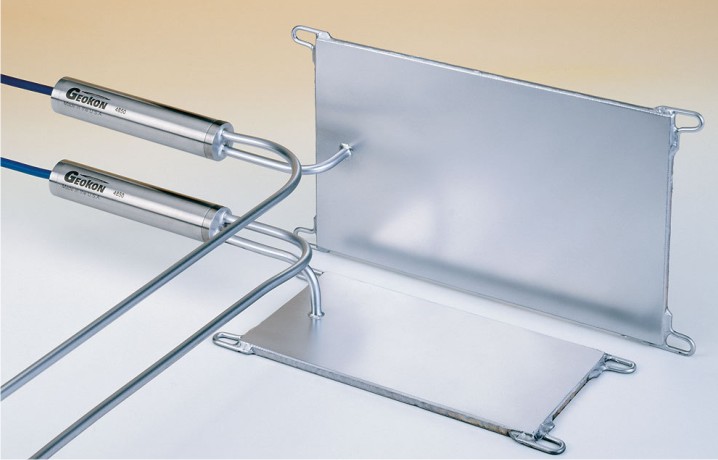

    NATM Style Shotcrete Stress (VW)

    The Model 4850 NATM Style Shotcrete Stress Cells are designed for the measurement of tangential (4850-1) and radial (4850-2) stresses…

  • Push-In Pressure (VW)

    Push-In Pressure (VW)

    The Model 4830 Push-In Pressure Cell is designed to be pushed in place for the measurement of total pressures in…

  • Jackout Pressure (VW)

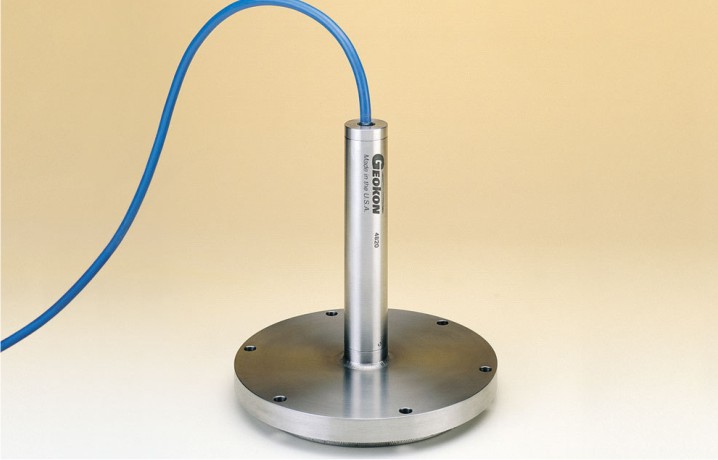

    Jackout Pressure (VW)

    The Model 4820 Jackout Pressure Cells are used to measure earth pressures on slurry walls. They are designed to fit…

  • “Fat Back” Pressure (Semiconductor, VW)

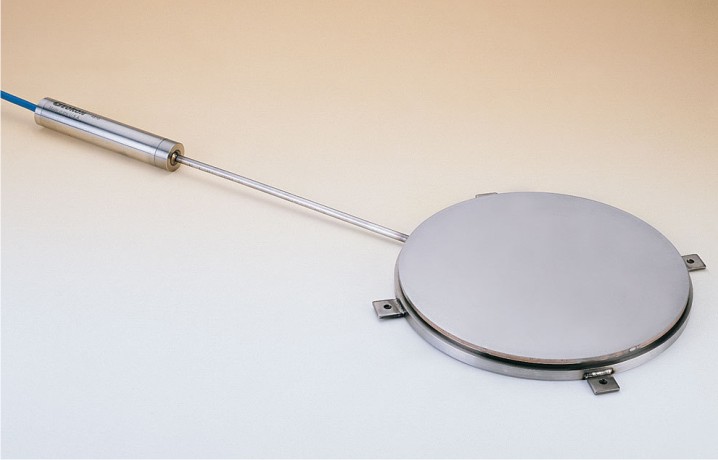

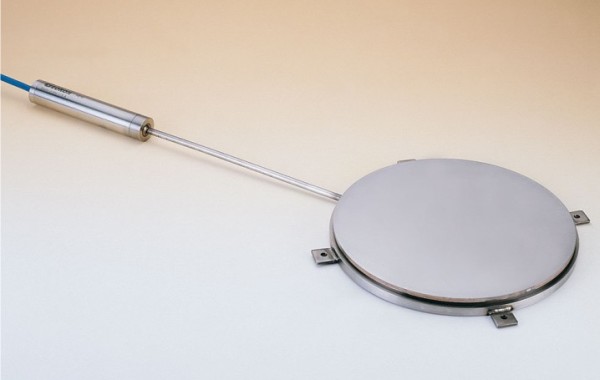

    “Fat Back” Pressure (Semiconductor, VW)

    The Model 4810 “Fat Back” Pressure Cell is intended to measure contact earth pressures on the surface of concrete or…

  • Earth Pressure (Semiconductor, VW)

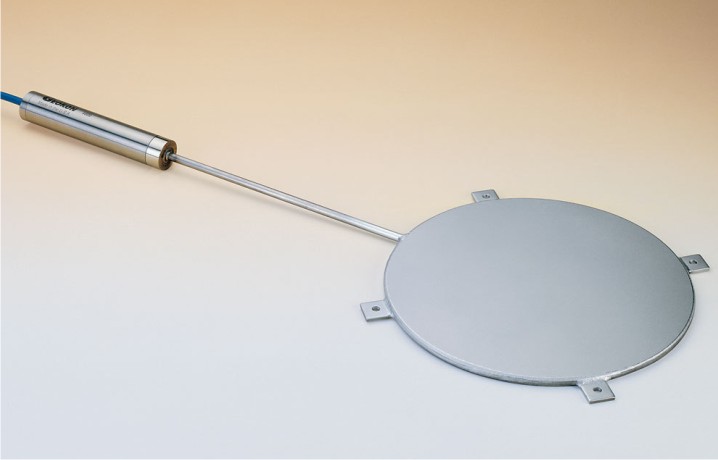

    Earth Pressure (Semiconductor, VW)

    The Model 4800 Earth Pressure Cells are designed to measure total pressure in earth fills and embankments. All cells consist of…
