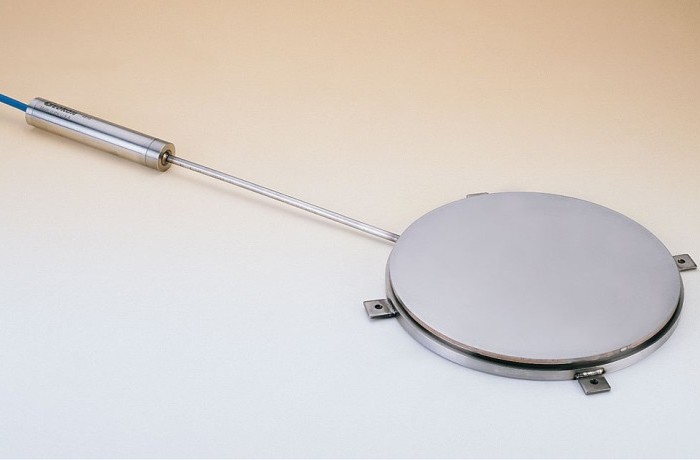

The Model 4810 “Fat Back” Pressure Cell is intended to measure contact earth pressures on the surface of concrete or steel structures. The cell has an extra thick backplate to minimize any point loading effects. ‘Ears’ on the cell assist in holding the cell to concrete forms or to retaining walls during installation.*
Specifications
| Standard Ranges¹ | 350, 700 kPa; 1, 2, 3, 5 MPa |
| Over Range | 150% F.S. (maximum) |
| Resolution | 0.025% F.S. |
| Accuracy² | ±0.1% F.S. |
| Temperature Range | −20°C to +80°C |
| Height × Diameter¹ | 12 × 230 mm |
¹Other ranges and sizes available on request.
²Stated accuracy is for the pressure transducer alone.
The total system accuracy (pressure transducer + pressure cell) is subject to site-specific variables.
