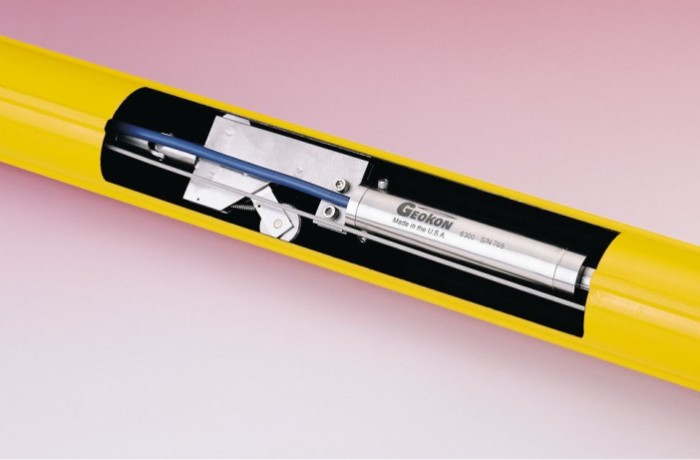

The Model 6300 Vibrating Wire In-Place Inclinometer is used in conjunction with near vertical inclinometer casing for the measurement of lateral displacement, similar to the Model 6000 Inclinometer Probe. However, the Model 6300 In-Place system is designed to be left, in place, inside the casing to permit automatic or continuous monitoring. Strings of sensors are joined together to obtain deflection profiles.
Specifications
| Standard Range¹ | ±10° |
| Resolution | ±0.05 mm/m (±10 arc seconds) |
| Accuracy | ±0.1% F.S. |
| Temperature Range | −20°C to +80°C |
| Length × Diameter | 187 × 32 mm (sensor) |
¹Other ranges available on request.
