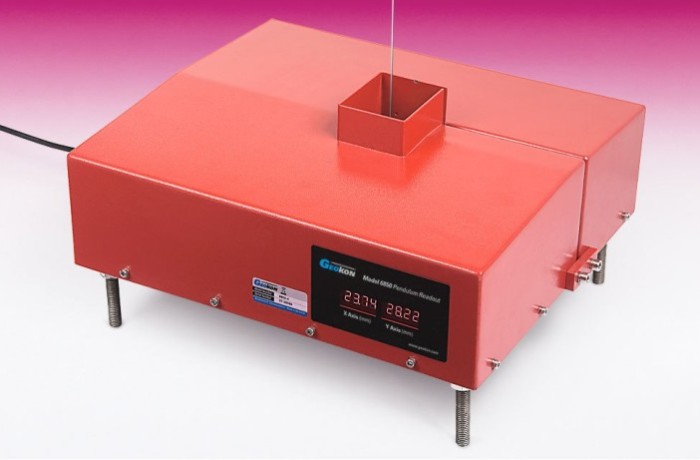

The Model 6850 Pendulum Readout is designed to make accurate measurements of the relative movements of normal and inverted pendulums, such as those found in dams, and can be installed as a new system or as an electronic upgrade for an existing system. The electronics package provides both 4-20 mA and EIA RS- 485 data outputs. The data can be stored locally, or remotely, with the Micro-1000 Datalogger, or other dataloggers, and thence by hard-wire or modem to a computer (IBM PC). Two 2-D models are available: 50×50 mm and 50×100 mm; and one 3-D model: 50×100×50 mm.
Specifications
| Standard Range | (2-D) X axis: 0-50 mm, Y axis: 0-50 mm (2-D) X axis: 0-50 mm, Y axis: 0-100 mm (3-D) X axis: 0-50 mm, Y axis: 0-100 mm, Z axis: 0-50 mm |
| Resolution | 0.01 mm |
| Accuracy | better than 0.1 mm |
| Operating Temperature | −15°C to +60°C |
| L × W × H | (2-D) 380 × 330 × 145 mm (2-D) 380 × 330 × 145 mm (3-D) 425 × 375 × 190 mm |
